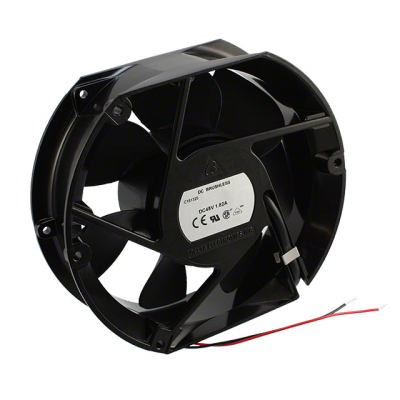

AHB1548GHG
| Manufacturer: | Delta Electronics |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | AHB1548GHG | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 172X50.8MM 48VDC WIRE | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 5200 RPM
- Noise
- 68.5 dB(A)
- Width
- 50.80mm
- Series
- AHB
- Weight
- 1.8 lbs (816.5 g)
- Air Flow
- 402.7 CFM (11.28m³/min)
- Fan Type
- Tubeaxial
- Features
- -
- Approvals
- CE, CSA, UL, VDE
- Part Status
- Obsolete
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 73.0W
- Voltage Range
- 32 ~ 80VDC
- Static Pressure
- 1.964 in H2O (489.2 Pa)
- Voltage - Rated
- 48VDC
- Lifetime @ Temp.
- 100000 Hrs @ 40°C
- Material - Blade
- Plastic
- Material - Frame
- Aluminum
- Size / Dimension
- Rectangular/Rounded - 172mm L x 150mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 1.52A
- Operating Temperature
- -40 ~ 176°F (-40 ~ 80°C)
