Lanka Micro

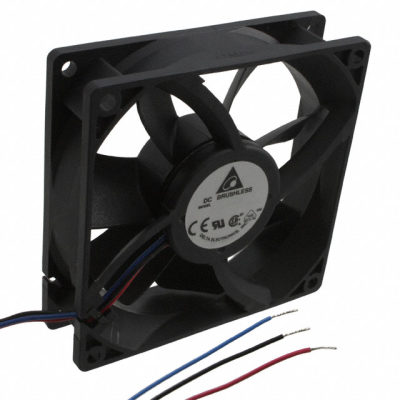

AFB0912SH-TZUG
| Manufacturer: | Delta Electronics |
In Stock 57 pcs
|
|
|---|---|---|---|
| Datasheet: | AFB0912SH-TZUG | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 92X25.4MM 12VDC WIRE | $20.59 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 4800 RPM
- Noise
- 53.0 dB(A)
- Width
- 25.40mm
- Series
- AFB
- Weight
- 0.265 lb (120.2 g)
- Air Flow
- 102.6 CFM (2.87m³/min)
- Fan Type
- Tubeaxial
- Features
- Speed Sensor (Tach)
- Approvals
- CE, CSA, UL, VDE
- Part Status
- Active
- Termination
- 3 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 9.00W
- Voltage Range
- 5 ~ 12.6VDC
- Static Pressure
- 0.526 in H2O (131.0 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- 70000 Hrs @ 40°C
- Material - Blade
- Plastic
- Material - Frame
- Plastic
- Size / Dimension
- Square - 92mm L x 92mm H
- Ingress Protection
- IP55 - Dust Protected, Water Resistant
- Current Rating (Amps)
- 0.750A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
