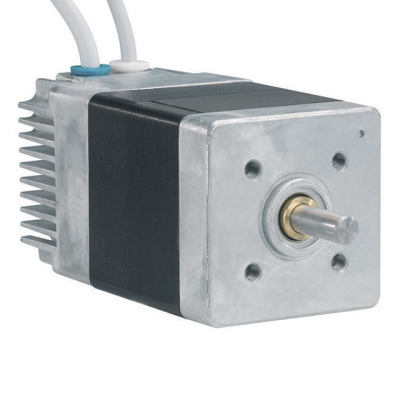

80180002

Product Parameter

RPM

3250 RPM

Type

DC Motor

Series

80180, TNi20

Weight

3.1 lbs (1.4 kg)

Features

Integrated Controller

Function

Standard

Approvals

-

Motor Type

Brushless (BLDC)

Part Status

Obsolete

Encoder Type

-

Power - Rated

80W

Voltage - Rated

24VDC

Diameter - Shaft

0.315" (8.00mm)

Size / Dimension

Square - 2.244" x 2.244" (57.00mm x 57.00mm)

Termination Style

Wire Leads

Gear Reduction Ratio

-

Mounting Hole Spacing

-

Operating Temperature

-

Length - Shaft and Bearing

0.984" (25.00mm)

Torque - Rated (oz-in / mNm)

33.99 / 240

Torque - Max Momentary (oz-in / mNm)

42.49 / 300
