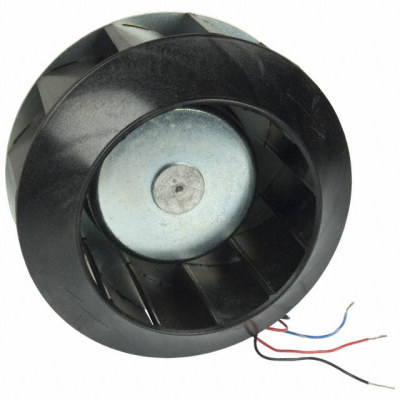

19039834A

Product Parameter

RPM

4000 RPM

Noise

65.9 dB(A)

Width

91.00mm

Series

Diplomat

Weight

1.5 lbs (680.4 g)

Air Flow

200.0 CFM (5.60m³/min)

Fan Type

Motorized Impellers

Features

Speed Sensor (Tach)

Approvals

-

Part Status

Obsolete

Termination

3 Wire Leads

Bearing Type

Ball

Power (Watts)

31.20W

Voltage Range

24 ~ 72VDC

Static Pressure

1.750 in H2O (435.9 Pa)

Voltage - Rated

48VDC

Lifetime @ Temp.

-

Material - Blade

Metal

Material - Frame

Aluminum

Size / Dimension

Round - 133mm Dia

Ingress Protection

-

Current Rating (Amps)

0.650A

Operating Temperature

-
