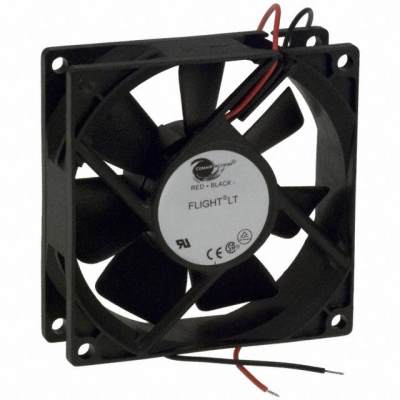

19032736A

Product Parameter

RPM

3010 RPM

Noise

34.4 dB(A)

Width

25.00mm

Series

Flight LT 80

Weight

0.19 lb (86.18 g)

Air Flow

38.0 CFM (1.06m³/min)

Fan Type

Tubeaxial

Features

-

Approvals

CE, CSA, UR

Part Status

Obsolete

Termination

2 Wire Leads

Bearing Type

Ball

Power (Watts)

3.00W

Voltage Range

10.8 ~ 13.2VDC

Static Pressure

0.157 in H2O (39.1 Pa)

Voltage - Rated

12VDC

Lifetime @ Temp.

-

Material - Blade

-

Material - Frame

-

Size / Dimension

Square - 80mm L x 80mm H

Ingress Protection

-

Current Rating (Amps)

0.250A

Operating Temperature

-
