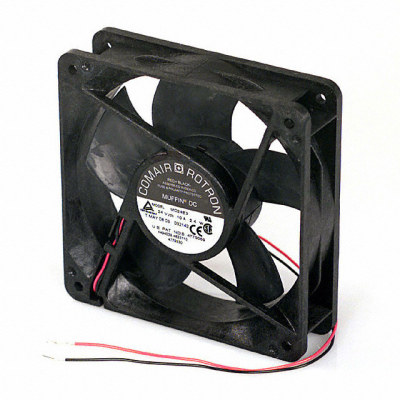

19032142A

Product Parameter

RPM

2170 RPM

Noise

39.7 dB(A)

Width

32.00mm

Series

Muffin

Weight

0.529 lb (239.95 g)

Air Flow

60.0 CFM (1.68m³/min)

Fan Type

Tubeaxial

Features

-

Approvals

-

Part Status

Obsolete

Termination

2 Wire Leads

Bearing Type

Sleeve

Power (Watts)

2.40W

Voltage Range

12 ~ 28VDC

Static Pressure

0.132 in H2O (32.9 Pa)

Voltage - Rated

24VDC

Lifetime @ Temp.

-

Material - Blade

Plastic

Material - Frame

Plastic

Size / Dimension

Square - 120mm L x 120mm H

Ingress Protection

-

Current Rating (Amps)

0.100A

Operating Temperature

-
