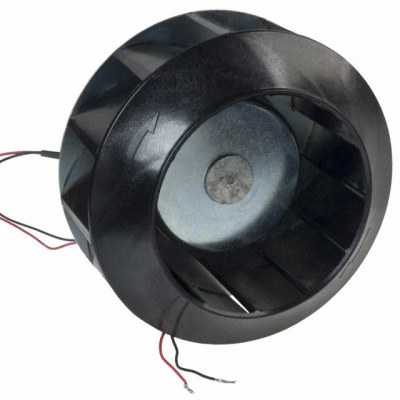

19031605A

Product Parameter

RPM

3400 RPM

Noise

57.1 dB(A)

Width

91.00mm

Series

Diplomat

Weight

1.5 lbs (680.4 g)

Air Flow

175.0 CFM (4.90m³/min)

Fan Type

Motorized Impellers

Features

-

Approvals

-

Part Status

Obsolete

Termination

2 Wire Leads

Bearing Type

Ball

Power (Watts)

26.00W

Voltage Range

12 ~ 28VDC

Static Pressure

1.370 in H2O (341.2 Pa)

Voltage - Rated

24VDC

Lifetime @ Temp.

35000 Hrs @ 50°C

Material - Blade

Metal

Material - Frame

Aluminum

Size / Dimension

Round - 133mm Dia

Ingress Protection

-

Current Rating (Amps)

1.1A

Operating Temperature

14 ~ 158°F (-10 ~ 70°C)
