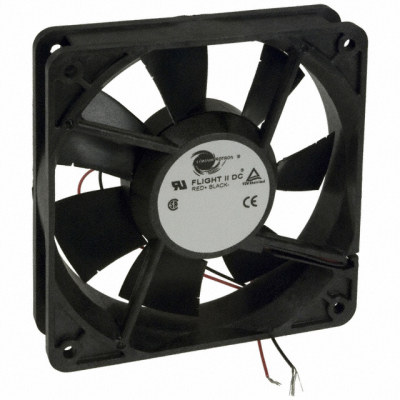

19031175A

Product Parameter

RPM

2940 RPM

Noise

42.9 dB(A)

Width

25.60mm

Series

Flight II 120

Weight

0.441 lb (200.03 g)

Air Flow

90.0 CFM (2.52m³/min)

Fan Type

Tubeaxial

Features

-

Approvals

-

Part Status

Obsolete

Termination

2 Wire Leads

Bearing Type

Ball

Power (Watts)

4.00W

Voltage Range

12 ~ 28VDC

Static Pressure

0.211 in H2O (52.6 Pa)

Voltage - Rated

24VDC

Lifetime @ Temp.

-

Material - Blade

-

Material - Frame

-

Size / Dimension

Square - 120.1mm L x 120.1mm H

Ingress Protection

-

Current Rating (Amps)

0.170A

Operating Temperature

-
