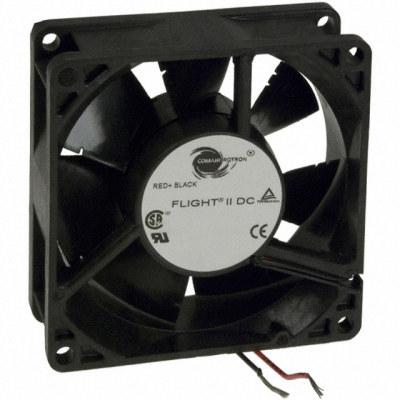

19031163A

Product Parameter

RPM

3628 RPM

Noise

36.2 dB(A)

Width

25.40mm

Series

Flight II 80

Weight

0.287 lb (130.18 g)

Air Flow

37.0 CFM (1.04m³/min)

Fan Type

Tubeaxial

Features

-

Approvals

-

Part Status

Obsolete

Termination

2 Wire Leads

Bearing Type

Ball

Power (Watts)

2.00W

Voltage Range

12 ~ 28VDC

Static Pressure

0.233 in H2O (58.0 Pa)

Voltage - Rated

24VDC

Lifetime @ Temp.

-

Material - Blade

-

Material - Frame

-

Size / Dimension

Square - 80mm L x 80mm H

Ingress Protection

-

Current Rating (Amps)

0.090A

Operating Temperature

-
