Lanka Micro

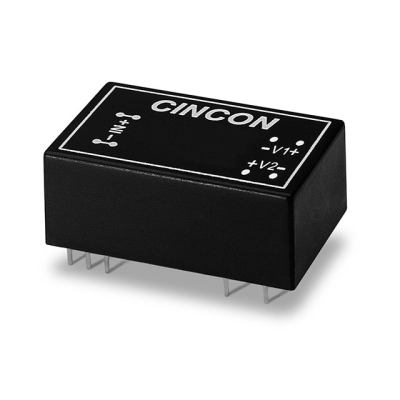

EC6AW-110S15
| Manufacturer: | Cincon Electronics Co. LTD |
In Stock 20 pcs
|
|
|---|---|---|---|
| Datasheet: | EC6AW-110S15 | ||
| Product Category: | DC DC Converters | Reference Price (In US Dollars) | 1pcs |
| Description: | ISOLATED DC/DC CONVERTERS 10W 9- | $27.36 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Isolated Module
- Series
- EC6AW-110 (8W)
- Features
- Remote On/Off, OCP, OVP, SCP, UVLO
- Efficiency
- 88.5%
- Part Status
- Active
- Applications
- ITE (Commercial), Railway
- Mounting Type
- Through Hole
- Power (Watts)
- 10W
- Package / Case
- 24-DIP Module, 9 Leads
- Control Features
- Enable, Active High
- Size / Dimension
- 1.25" L x 0.80" W x 0.50" H (31.8mm x 20.3mm x 12.7mm)
- Number of Outputs
- 1
- Voltage - Output 1
- 15V
- Voltage - Output 2
- -
- Voltage - Output 3
- -
- Voltage - Output 4
- -
- Voltage - Isolation
- 3kV
- Operating Temperature
- -40°C ~ 85°C (With Derating)
- Voltage - Input (Max)
- 160V
- Voltage - Input (Min)
- 43V
- Current - Output (Max)
- 666mA
- Supplier Device Package
- -
