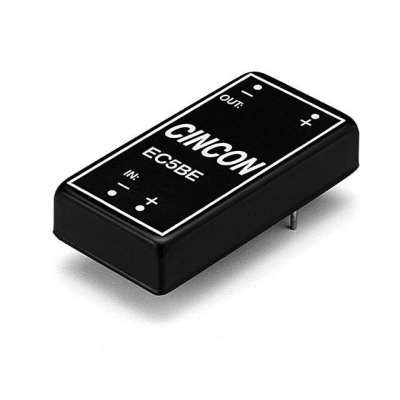

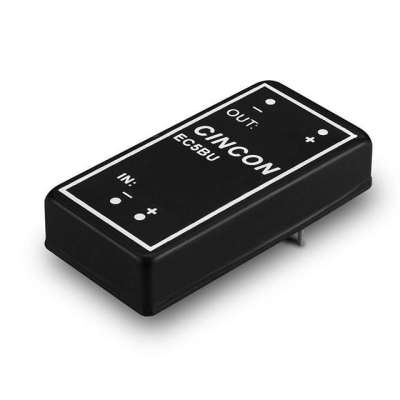

EC5BU-24D12
| Manufacturer: | Cincon Electronics Co. LTD |
In Stock 20 pcs
|
|
|---|---|---|---|
| Datasheet: | EC5BU-24D12 | ||
| Product Category: | DC DC Converters | Reference Price (In US Dollars) | 1pcs |
| Description: | ISOLATED DC/DC CONVERTERS 13.2-1 | $30.73 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Isolated Module
- Series
- EC5BU (15W)
- Features
- OCP, OTP, OVP, SCP, UVLO
- Efficiency
- 88%
- Part Status
- Active
- Applications
- ITE (Commercial)
- Mounting Type
- Through Hole
- Power (Watts)
- 15W
- Package / Case
- 6-DIP Module
- Control Features
- -
- Size / Dimension
- 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
- Number of Outputs
- 2
- Voltage - Output 1
- 12V
- Voltage - Output 2
- -12V
- Voltage - Output 3
- -
- Voltage - Output 4
- -
- Voltage - Isolation
- 1.5kV
- Operating Temperature
- -40°C ~ 85°C (With Derating)
- Voltage - Input (Max)
- 36V
- Voltage - Input (Min)
- 18V
- Current - Output (Max)
- 625mA, 625mA
- Supplier Device Package
- -
