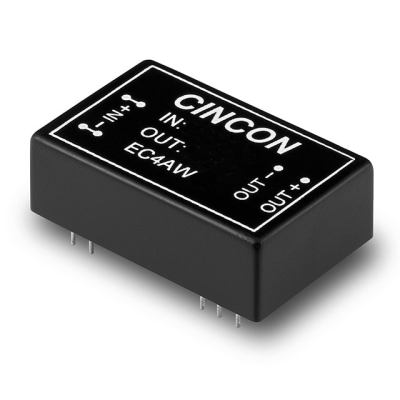

EC4AW02H
| Manufacturer: | Cincon Electronics Co. LTD |
In Stock 380 pcs
|
|
|---|---|---|---|
| Datasheet: | EC4AW02H | ||
| Product Category: | DC DC Converters | Reference Price (In US Dollars) | 1pcs |
| Description: | ISOLATED DC/DC CONVERTERS 3.3-6W | $23.84 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Isolated Module
- Series
- EC4AW (6W)
- Features
- SCP
- Efficiency
- 83%
- Part Status
- Active
- Applications
- ITE (Commercial)
- Mounting Type
- Through Hole
- Power (Watts)
- 5.6W
- Package / Case
- 24-DIP Module, 14 Leads
- Control Features
- -
- Size / Dimension
- 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
- Number of Outputs
- 1
- Voltage - Output 1
- 12V
- Voltage - Output 2
- -
- Voltage - Output 3
- -
- Voltage - Output 4
- -
- Voltage - Isolation
- 3kV
- Operating Temperature
- -40°C ~ 85°C (With Derating)
- Voltage - Input (Max)
- 36V
- Voltage - Input (Min)
- 9V
- Current - Output (Max)
- 470mA
- Supplier Device Package
- -
