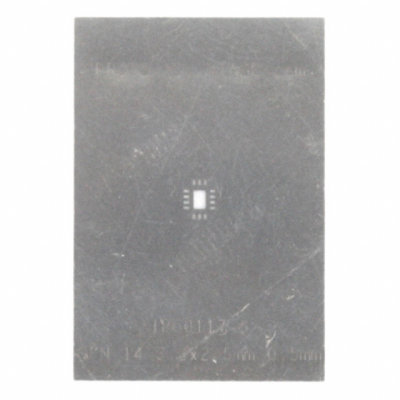

IPC0117-S
| Manufacturer: | Chip Quik, Inc. |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | IPC0117-S | ||
| Product Category: | Solder Stencils, Templates | Reference Price (In US Dollars) | 1pcs |
| Description: | QFN-14 STENCIL | $11.59 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- QFN/LFCSP
- Pitch
- 0.020" (0.50mm)
- Series
- Proto-Advantage IPC
- Material
- Stainless Steel
- Thickness
- 0.0040" (0.102mm)
- Part Status
- Active
- Inner Dimension
- 0.126" L x 0.098" W (3.20mm x 2.50mm)
- Outer Dimension
- 1.300" L x 0.900" W (33.02mm x 22.86mm)
- Thermal Center Pad
- 0.083" L x 0.055" W (2.10mm x 1.40mm)
- Number of Positions
- 14
