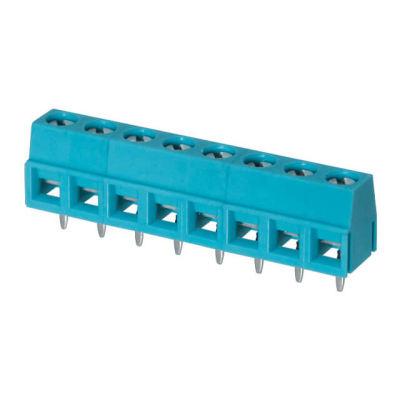

TB006-508-08BE
| Manufacturer: | CUI, Inc. |
In Stock 1018 pcs
|
|
|---|---|---|---|
| Datasheet: | TB006-508-08BE | ||
| Product Category: | Terminal Blocks - Wire to Board | Reference Price (In US Dollars) | 1pcs |
| Description: | TERMINAL BLOCK, SCREW TYPE, 5.08 | $1.48 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Color
- Blue
- Pitch
- 0.200" (5.08mm)
- Series
- TB006-508
- Current
- 12A
- Voltage
- 300V
- Features
- Interlocking (Side)
- Packaging
- Bulk
- Wire Gauge
- 14-26 AWG
- Part Status
- Active
- Screw Thread
- M3
- Mounting Type
- Through Hole
- Torque - Screw
- 0.5 Nm (4.4 Lb-In)
- Number of Levels
- 1
- Wire Termination
- Screw - Rising Cage Clamp
- Mating Orientation
- Horizontal with Board
- Dielectric Material
- Polyamide (PA66), Nylon 6/6
- Positions Per Level
- 8
- Operating Temperature
- -40°C ~ 105°C
- Clamp Material - Plating
- Copper Alloy - Nickel Plated
- Screw Material - Plating
- Steel - Zinc Plated
- Contact Material - Plating
- Copper Alloy - Tin Plated
