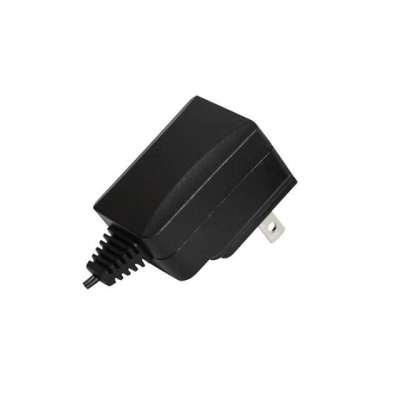

SMI6B-12-K-P5
| Manufacturer: | CUI, Inc. |
In Stock 598 pcs
|
|
|---|---|---|---|
| Datasheet: | SMI6B-12-K-P5 | ||
| Product Category: | AC DC Desktop, Wall Adapters | Reference Price (In US Dollars) | 1pcs |
| Description: | AC-DC, 12 VDC, 0.5 A, SW, MULTI- | $7 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Form
- Wall Mount (Class II)
- Series
- SMI6B (6W)
- Weight
- 0.11 lb (49.9 g)
- Approvals
- CCC, CE, cULus, FCC, GS, PSE, RCM
- Efficiency
- Level VI, CoC Tier 2
- Input Type
- Multi-Blade (Sold Separately)
- Cord Length
- 60.2" (1.53m)
- Part Status
- Active
- Applications
- ITE (Commercial)
- Polarization
- Positive Center
- Power (Watts)
- 6W
- Input Connector
- Multi-Blade (Sold Separately)
- Region Utilized
- International
- Voltage - Input
- 90 ~ 264 VAC
- Output Connector
- Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm
- Size / Dimension
- 1.85" L x 1.36" W x 1.04" H (47.0mm x 34.5mm x 26.4mm)
- Voltage - Output
- 12V
- Operating Temperature
- 0°C ~ 40°C
- Current - Output (Max)
- 500mA
- No Load Power Consumption
- 75mW (Max)
