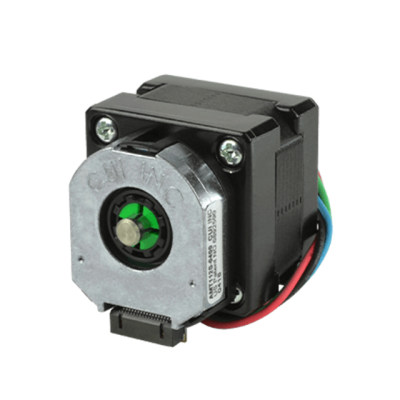

NEMA14-10-04D-AMT112S
| Manufacturer: | CUI, Inc. |
In Stock 14 pcs
|
|
|---|---|---|---|
| Datasheet: | NEMA14-10-04D-AMT112S | ||
| Product Category: | Stepper Motors | Reference Price (In US Dollars) | 1pcs |
| Description: | STEPPER MOTOR W/ INCREMENTAL ENC | $102.7 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- -
- Series
- NEMA14-AMT112S
- Accuracy
- ±0.2%
- Features
- Integrated Encoder
- Approvals
- CE
- Coil Type
- Bipolar
- Step Angle
- 1.8°
- Part Status
- Active
- Rotor Inertia
- 0.26gcm²
- Coil Resistance
- 3.8 Ohms
- NEMA Frame Size
- 14
- Voltage - Rated
- 24 ~ 48VDC
- Diameter - Shaft
- 0.197" (5.00mm)
- Size / Dimension
- Square - 1.390" x 1.390" (35.30mm x 35.30mm)
- Termination Style
- Connector
- Steps per Revolution
- 200
- Current Rating (Amps)
- 450mA
- Mounting Hole Spacing
- 1.023" (26.00mm)
- Operating Temperature
- -20°C ~ 50°C
- Length - Shaft and Bearing
- 0.602" (15.30mm)
- Torque - Holding (oz-in / mNm)
- 7.5 / 52.96
