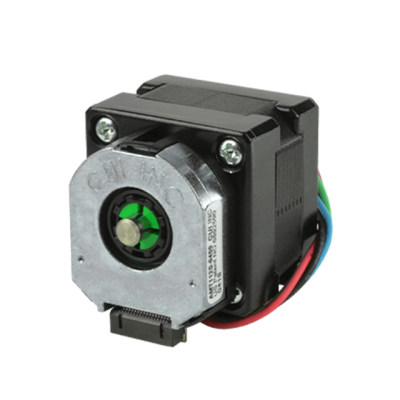

NEMA11-18-01D-AMT112S
| Manufacturer: | CUI, Inc. |
In Stock 8 pcs
|
|
|---|---|---|---|
| Datasheet: | NEMA11-18-01D-AMT112S | ||
| Product Category: | Stepper Motors | Reference Price (In US Dollars) | 1pcs |
| Description: | STEPPER MOTOR W/ INCREMENTAL ENC | $116.19 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- -
- Series
- NEMA11-AMT112S
- Accuracy
- ±0.2%
- Features
- Integrated Encoder
- Approvals
- CE
- Coil Type
- Bipolar
- Step Angle
- 1.8°
- Part Status
- Active
- Rotor Inertia
- 0.44gcm²
- Coil Resistance
- 7.1 Ohms
- NEMA Frame Size
- 11
- Voltage - Rated
- 24VDC
- Diameter - Shaft
- 0.197" (5.00mm)
- Size / Dimension
- Square - 1.110" x 1.110" (28.20mm x 28.20mm)
- Termination Style
- Connector
- Steps per Revolution
- 200
- Current Rating (Amps)
- 670mA
- Mounting Hole Spacing
- 0.909" (23.10mm)
- Operating Temperature
- -20°C ~ 50°C
- Length - Shaft and Bearing
- 0.791" (20.10mm)
- Torque - Holding (oz-in / mNm)
- 13.7 / 96.74
