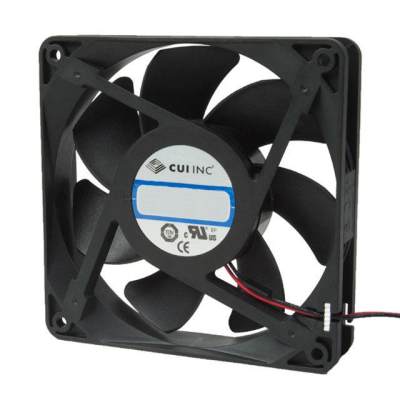

CFM-A238-13-11
| Manufacturer: | CUI, Inc. |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | CFM-A238-13-11 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | DC AXIAL FAN, 120 MM SQUARE, 38 | $14.44 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 4600 RPM
- Noise
- 61.5 dB(A)
- Width
- 38.00mm
- Series
- CFM-120
- Weight
- 0.656 lb (297.56 g)
- Air Flow
- 200.9 CFM (5.63m³/min)
- Fan Type
- Tubeaxial
- Features
- Locked Rotor Sensor
- Approvals
- CE, CUR, TUV, UL
- Part Status
- Active
- Termination
- 3 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 21.00W
- Voltage Range
- 6 ~ 13.8VDC
- Static Pressure
- 0.780 in H2O (194.3 Pa)
- Voltage - Rated
- 12VDC
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square - 120mm L x 120mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 1.4A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
