Lanka Micro

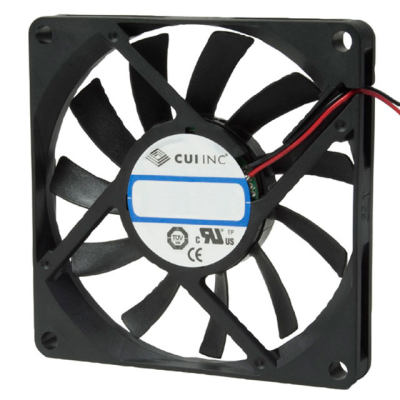

CFM-8015-13-11
| Manufacturer: | CUI, Inc. |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | CFM-8015-13-11 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | DC AXIAL FAN, 80 MM SQUARE, 15 M | $6.81 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3500 RPM
- Noise
- 39.8 dB(A)
- Width
- 15.40mm
- Series
- CFM-80
- Weight
- -
- Air Flow
- 44.0 CFM (1.23m³/min)
- Fan Type
- Tubeaxial
- Features
- Locked Rotor Sensor
- Approvals
- CE, CUR, TUV, UL
- Part Status
- Active
- Termination
- 3 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 2.88W
- Voltage Range
- 6 ~ 13.8VDC
- Static Pressure
- 0.163 in H2O (40.6 Pa)
- Voltage - Rated
- 12VDC
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square - 80mm L x 80mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.180A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
