Lanka Micro

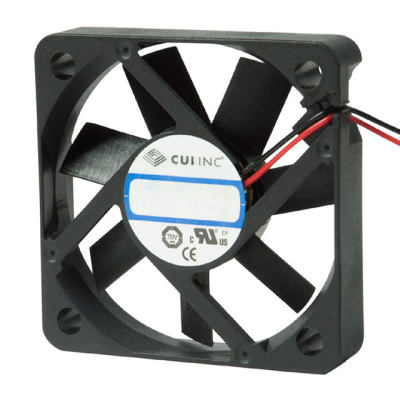

CFM-5010-03-22
| Manufacturer: | CUI, Inc. |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | CFM-5010-03-22 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | DC AXIAL FAN, 50 MM SQUARE, 10 M | $6.25 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 6100 RPM
- Noise
- 37.2 dB(A)
- Width
- 10.60mm
- Series
- CFM-50
- Weight
- -
- Air Flow
- 16.1 CFM (0.451m³/min)
- Fan Type
- Tubeaxial
- Features
- PWM Control, Speed Sensor (Tach)
- Approvals
- CE, CUR, TUV, UL
- Part Status
- Active
- Termination
- 4 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 1.40W
- Voltage Range
- 4 ~ 5.5VDC
- Static Pressure
- 0.203 in H2O (50.6 Pa)
- Voltage - Rated
- 5VDC
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square - 50mm L x 50mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.210A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
