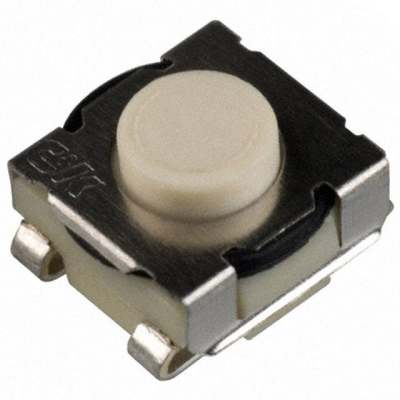

KT11P3JM

Product Parameter

Series

KT

Circuit

SPST-NO

Outline

6.38mm x 6.22mm

Features

Sealed

Packaging

Cut Tape (CT)

Part Status

Obsolete

Illumination

Non-Illuminated

Actuator Type

Standard

Mounting Type

Surface Mount

Switch Travel

-

Mechanical Life

100,000 Cycles

Operating Force

-

Switch Function

Off-Mom

Actuator Material

Polyamide (PA), Nylon

Termination Style

J Lead

Ingress Protection

IP57 - Dust Protected, Waterproof

Actuator Orientation

Top Actuated

Operating Temperature

-40°C ~ 90°C

Contact Rating @ Voltage

1VA @ 50VAC/DC

Illumination Type, Color

-

Actuator Length, Right Angle

-

Illumination Voltage (Nominal)

-

Actuator Height off PCB, Vertical

4.12mm
