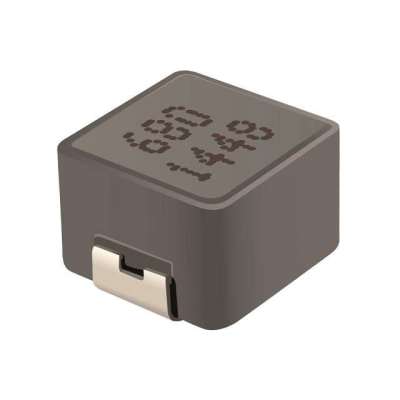

SRP7050TA-4R7M
| Manufacturer: | Bourns, Inc. |
In Stock 800 pcs
|
|
|---|---|---|---|
| Datasheet: | SRP7050TA-4R7M | ||
| Product Category: | Fixed Inductors | Reference Price (In US Dollars) | 1pcs |
| Description: | FIXED IND 4.7UH 6.5A 30.8 MOHM | $0.63 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Wirewound
- Series
- SRP7050TA
- Ratings
- AEC-Q200
- Q @ Freq
- 15 @ 100kHz
- Packaging
- Tape & Reel (TR)
- Shielding
- Shielded
- Tolerance
- ±20%
- Inductance
- 4.7µH
- Part Status
- Active
- Mounting Type
- Surface Mount
- Package / Case
- Nonstandard
- Material - Core
- Carbonyl Powder
- Base Part Number
- SRP7050TA
- Size / Dimension
- 0.287" L x 0.260" W (7.30mm x 6.60mm)
- DC Resistance (DCR)
- 30.8mOhm Max
- Current - Saturation
- 10A
- Current Rating (Amps)
- 6.5A
- Height - Seated (Max)
- 0.197" (5.00mm)
- Operating Temperature
- -40°C ~ 150°C
- Supplier Device Package
- -
- Frequency - Self Resonant
- 22MHz
- Inductance Frequency - Test
- 100kHz
