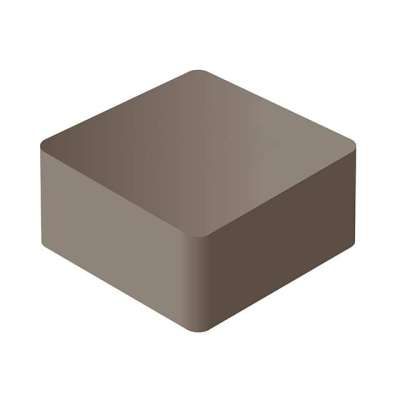

SRP6030CA-3R3M
| Manufacturer: | Bourns, Inc. |
In Stock 1070 pcs
|
|
|---|---|---|---|
| Datasheet: | SRP6030CA-3R3M | ||
| Product Category: | Fixed Inductors | Reference Price (In US Dollars) | 1pcs |
| Description: | IND,6.6X6.4X2.9MM,3.3UH,20%,8A,S | $1.65 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Wirewound
- Series
- SRP6030CA
- Ratings
- AEC-Q200
- Features
- -
- Q @ Freq
- -
- Packaging
- Cut Tape (CT)
- Shielding
- Shielded
- Tolerance
- ±20%
- Inductance
- 3.3µH
- Part Status
- Active
- Mounting Type
- Surface Mount
- Package / Case
- Nonstandard
- Material - Core
- Iron Powder
- Base Part Number
- SRP6030CA
- Size / Dimension
- 0.260" L x 0.252" W (6.60mm x 6.40mm)
- DC Resistance (DCR)
- 20.8mOhm Max
- Current - Saturation
- 12.2A
- Current Rating (Amps)
- 8A
- Height - Seated (Max)
- 0.118" (3.00mm)
- Operating Temperature
- -55°C ~ 155°C
- Supplier Device Package
- -
- Frequency - Self Resonant
- 25MHz
- Inductance Frequency - Test
- 100kHz
