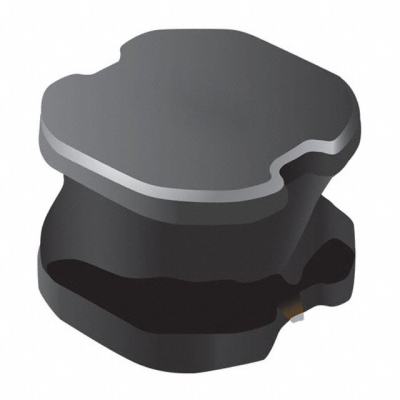

SRN6045-8R2Y
| Manufacturer: | Bourns, Inc. |
In Stock 12060 pcs
|
|
|---|---|---|---|
| Datasheet: | SRN6045-8R2Y | ||
| Product Category: | Fixed Inductors | Reference Price (In US Dollars) | 1pcs |
| Description: | FIXED IND 8.2UH 2.7A 55 MOHM SMD | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Wirewound
- Series
- SRN6045
- Ratings
- -
- Q @ Freq
- 15 @ 7.96MHz
- Packaging
- Digi-Reel®
- Shielding
- Semi-Shielded
- Tolerance
- ±30%
- Inductance
- 8.2µH
- Part Status
- Active
- Mounting Type
- Surface Mount
- Package / Case
- Nonstandard
- Material - Core
- Ferrite
- Base Part Number
- SRN6045
- Size / Dimension
- 0.236" L x 0.236" W (6.00mm x 6.00mm)
- DC Resistance (DCR)
- 55mOhm Max
- Current - Saturation
- 3.3A
- Current Rating (Amps)
- 2.7A
- Height - Seated (Max)
- 0.177" (4.50mm)
- Operating Temperature
- -40°C ~ 125°C
- Supplier Device Package
- -
- Frequency - Self Resonant
- 18MHz
- Inductance Frequency - Test
- 100kHz
