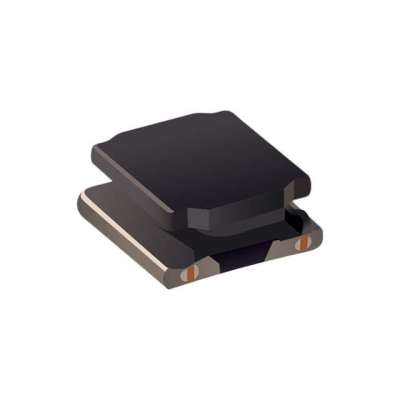

SRN4018TA-470M
| Manufacturer: | Bourns, Inc. |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | SRN4018TA-470M | ||
| Product Category: | Fixed Inductors | Reference Price (In US Dollars) | 1pcs |
| Description: | FIXED IND 47UH 580MA 585 MOHM | $0.16 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Wirewound
- Series
- SRN4018TA
- Ratings
- AEC-Q200
- Q @ Freq
- 10 @ 100kHz
- Packaging
- Tape & Reel (TR)
- Shielding
- Semi-Shielded
- Tolerance
- ±20%
- Inductance
- 47µH
- Part Status
- Active
- Mounting Type
- Surface Mount
- Package / Case
- Nonstandard
- Material - Core
- Ferrite
- Base Part Number
- SRN4018TA
- Size / Dimension
- 0.169" L x 0.169" W (4.30mm x 4.30mm)
- DC Resistance (DCR)
- 585mOhm
- Current - Saturation
- 600mA
- Current Rating (Amps)
- 580mA
- Height - Seated (Max)
- 0.071" (1.80mm)
- Operating Temperature
- -40°C ~ 125°C
- Frequency - Self Resonant
- 17MHz
- Inductance Frequency - Test
- 100kHz
