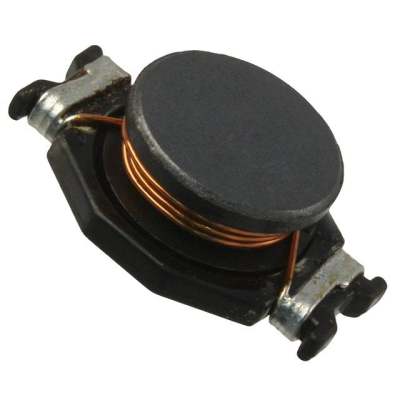

SDR2207-221KL
| Manufacturer: | Bourns, Inc. |
In Stock 446 pcs
|
|
|---|---|---|---|
| Datasheet: | SDR2207-221KL | ||
| Product Category: | Fixed Inductors | Reference Price (In US Dollars) | 1pcs |
| Description: | FIXED IND 220UH 1.2A 380 MOHM | $1.69 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Wirewound
- Series
- SDR2207
- Ratings
- -
- Q @ Freq
- 19 @ 2MHz
- Packaging
- Cut Tape (CT)
- Shielding
- Unshielded
- Tolerance
- ±10%
- Inductance
- 220µH
- Part Status
- Active
- Mounting Type
- Surface Mount
- Package / Case
- Nonstandard
- Material - Core
- Ferrite
- Base Part Number
- SDR2207
- Size / Dimension
- 0.866" L x 0.591" W (22.00mm x 15.00mm)
- DC Resistance (DCR)
- 380mOhm Max
- Current - Saturation
- 2.4A
- Current Rating (Amps)
- 1.2A
- Height - Seated (Max)
- 0.307" (7.80mm)
- Operating Temperature
- -40°C ~ 125°C
- Supplier Device Package
- -
- Frequency - Self Resonant
- 5.5MHz
- Inductance Frequency - Test
- 100kHz
