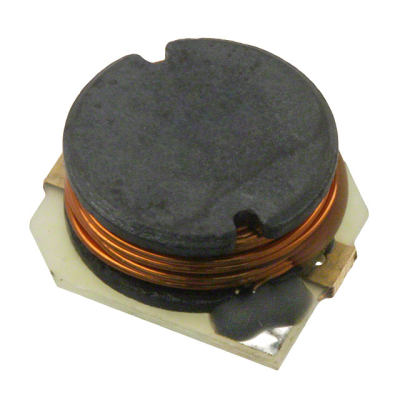

SDR1105-470KL
| Manufacturer: | Bourns, Inc. |
In Stock 291 pcs
|
|
|---|---|---|---|
| Datasheet: | SDR1105-470KL | ||
| Product Category: | Fixed Inductors | Reference Price (In US Dollars) | 1pcs |
| Description: | FIXED IND 47UH 2.2A 170 MOHM SMD | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Wirewound
- Series
- SDR1105
- Ratings
- AEC-Q200
- Q @ Freq
- -
- Packaging
- Digi-Reel®
- Shielding
- Unshielded
- Tolerance
- ±10%
- Inductance
- 47µH
- Part Status
- Active
- Mounting Type
- Surface Mount
- Package / Case
- Nonstandard
- Material - Core
- Ferrite
- Base Part Number
- SDR1105
- Size / Dimension
- 0.437" L x 0.394" W (11.10mm x 10.00mm)
- DC Resistance (DCR)
- 170mOhm Max
- Current - Saturation
- 4A
- Current Rating (Amps)
- 2.2A
- Height - Seated (Max)
- 0.197" (5.00mm)
- Operating Temperature
- -40°C ~ 125°C
- Frequency - Self Resonant
- -
- Inductance Frequency - Test
- 1kHz
