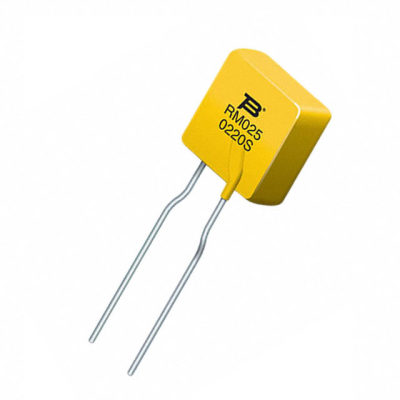

MF-RM025/240-2
| Manufacturer: | Bourns, Inc. |
In Stock 2960 pcs
|
|
|---|---|---|---|
| Datasheet: | MF-RM025/240-2 | ||
| Product Category: | PTC Resettable Fuses | Reference Price (In US Dollars) | 1pcs |
| Description: | PTC RESET FUSE 240V 250MA RADIAL | $0.7 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Polymeric
- Series
- Multifuse®, MF-RM
- Ratings
- -
- Approvals
- cURus, TUV
- Packaging
- Cut Tape (CT)
- Part Status
- Active
- Lead Spacing
- 0.114" (2.90mm)
- Time to Trip
- 18.5s
- Current - Max
- 3.5A
- Mounting Type
- Through Hole
- Voltage - Max
- 240V (265V Int)
- Package / Case
- Radial, Disc
- Thickness (Max)
- -
- Base Part Number
- MF-RM
- Size / Dimension
- 0.394" L x 0.150" W (10.00mm x 3.80mm)
- Current - Trip (It)
- 560mA
- Height - Seated (Max)
- 0.787" (20.00mm)
- Operating Temperature
- -20°C ~ 85°C
- Current - Hold (Ih) (Max)
- 250mA
- Resistance - Initial (Ri) (Min)
- 1.3 Ohms
- Resistance - Post Trip (R1) (Max)
- 3.8 Ohms
