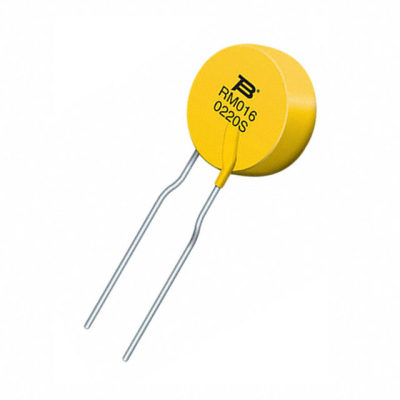

MF-RM016/240-2
| Manufacturer: | Bourns, Inc. |
In Stock 2012 pcs
|
|
|---|---|---|---|
| Datasheet: | MF-RM016/240-2 | ||
| Product Category: | PTC Resettable Fuses | Reference Price (In US Dollars) | 1pcs |
| Description: | PTC RESET FUSE 240V 160MA RADIAL | $0.66 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Polymeric
- Series
- Multifuse®, MF-RM
- Ratings
- -
- Approvals
- cURus, TUV
- Packaging
- Cut Tape (CT)
- Part Status
- Active
- Lead Spacing
- 0.114" (2.90mm)
- Time to Trip
- 15s
- Current - Max
- 2A
- Mounting Type
- Through Hole
- Voltage - Max
- 240V (265V Int)
- Package / Case
- Radial, Disc
- Thickness (Max)
- -
- Base Part Number
- MF-RM
- Size / Dimension
- 0.390" Dia x 0.150" T (9.90mm x 3.80mm)
- Current - Trip (It)
- 370mA
- Height - Seated (Max)
- 0.543" (13.80mm)
- Operating Temperature
- -20°C ~ 85°C
- Current - Hold (Ih) (Max)
- 160mA
- Resistance - Initial (Ri) (Min)
- 2.5 Ohms
- Resistance - Post Trip (R1) (Max)
- 7.8 Ohms
