Lanka Micro

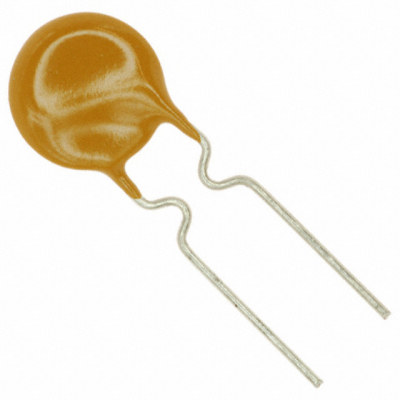

MF-RHT200-AP
| Manufacturer: | Bourns, Inc. |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | MF-RHT200-AP | ||
| Product Category: | PTC Resettable Fuses | Reference Price (In US Dollars) | 1pcs |
| Description: | PTC RESET FUSE 16V 2A RADIAL | $0.35 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Polymeric
- Series
- Multifuse®, MF-RHT
- Ratings
- AEC-Q200
- Approvals
- -
- Packaging
- Tape & Box (TB)
- Part Status
- Active
- Lead Spacing
- 0.114" (2.90mm)
- Time to Trip
- 3s
- Current - Max
- 100A
- Mounting Type
- Through Hole
- Voltage - Max
- 16V
- Package / Case
- Radial, Disc
- Thickness (Max)
- -
- Base Part Number
- MF-RHT
- Size / Dimension
- 0.370" Dia x 0.118" T (9.40mm x 3.00mm)
- Current - Trip (It)
- 3.8A
- Height - Seated (Max)
- 0.551" (14.00mm)
- Operating Temperature
- -40°C ~ 125°C
- Current - Hold (Ih) (Max)
- 2A
- Resistance - Initial (Ri) (Min)
- 45 mOhms
- Resistance - Post Trip (R1) (Max)
- 110 mOhms
