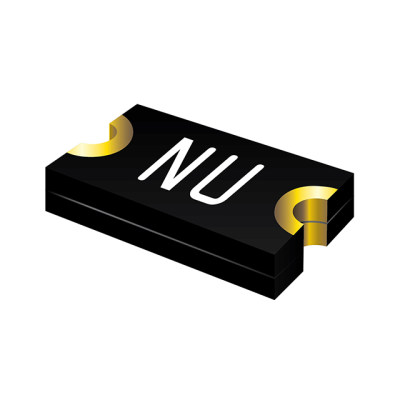

MF-NSML300-2
| Manufacturer: | Bourns, Inc. |
In Stock 2197 pcs
|
|
|---|---|---|---|
| Datasheet: | MF-NSML300-2 | ||
| Product Category: | PTC Resettable Fuses | Reference Price (In US Dollars) | 1pcs |
| Description: | PTC RESET FUSE 6V 3A 1206 | $0.95 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Polymeric
- Series
- Multifuse®, MF-NSML
- Ratings
- -
- Approvals
- cURus, TUV
- Packaging
- Cut Tape (CT)
- Part Status
- Active
- Lead Spacing
- -
- Time to Trip
- 4s
- Current - Max
- 50A
- Mounting Type
- Surface Mount
- Voltage - Max
- 6V
- Package / Case
- 1206 (3216 Metric), Concave
- Thickness (Max)
- 0.024" (0.60mm)
- Base Part Number
- MF-NSML
- Size / Dimension
- 0.128" L x 0.063" W (3.25mm x 1.60mm)
- Current - Trip (It)
- 6A
- Height - Seated (Max)
- -
- Operating Temperature
- -40°C ~ 85°C
- Current - Hold (Ih) (Max)
- 3A
- Resistance - Initial (Ri) (Min)
- 2.5 mOhms
- Resistance - Post Trip (R1) (Max)
- 20 mOhms
