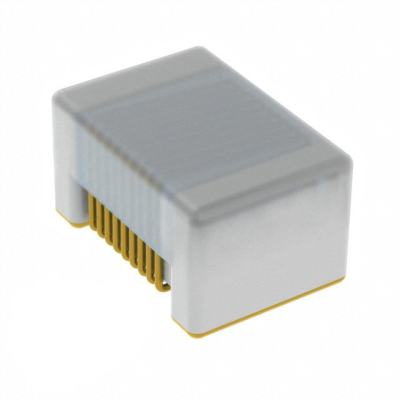

CW161009A-15NJ
| Manufacturer: | Bourns, Inc. |
In Stock 1000 pcs
|
|
|---|---|---|---|
| Datasheet: | CW161009A-15NJ | ||
| Product Category: | Fixed Inductors | Reference Price (In US Dollars) | 1pcs |
| Description: | FIXED IND 15NH 700MA 120MOHM SMD | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- -
- Series
- CW161009A
- Ratings
- AEC-Q200
- Features
- -
- Q @ Freq
- 35 @ 250MHz
- Packaging
- Digi-Reel®
- Shielding
- Unshielded
- Tolerance
- ±5%
- Inductance
- 15nH
- Part Status
- Active
- Mounting Type
- Surface Mount
- Package / Case
- 0603 (1608 Metric)
- Material - Core
- Ceramic
- Base Part Number
- CW161009A
- Size / Dimension
- 0.065" L x 0.045" W (1.65mm x 1.15mm)
- DC Resistance (DCR)
- 120mOhm Max
- Current - Saturation
- -
- Current Rating (Amps)
- 700mA
- Height - Seated (Max)
- 0.043" (1.10mm)
- Operating Temperature
- -40°C ~ 125°C
- Supplier Device Package
- 0603
- Frequency - Self Resonant
- 4GHz
- Inductance Frequency - Test
- 250MHz
