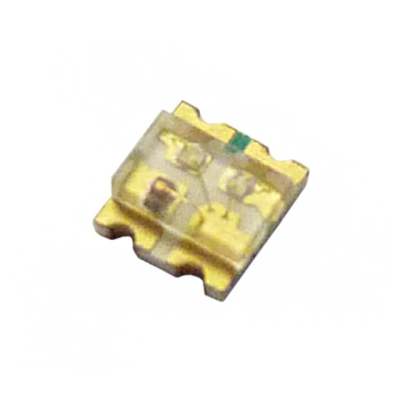

SM0605RGB

Product Parameter

Color

Red, Green, Blue (RGB)

Series

-

Features

-

Lens Size

1.50mm x 1.00mm

Packaging

Digi-Reel®

Lens Color

Colorless

Lens Style

Rectangle with Flat Top

Part Status

Active

Height (Max)

0.85mm

Configuration

Common Anode

Mounting Type

Surface Mount

Viewing Angle

120°

Current - Test

20mA Red, 20mA Green, 20mA Blue

Package / Case

0605 (1613 Metric)

Size / Dimension

1.60mm L x 1.50mm W

Lens Transparency

Clear

Wavelength - Peak

630nm Red, 523nm Green, 468nm Blue

Millicandela Rating

120mcd Red, 700mcd Green, 145mcd Blue

Wavelength - Dominant

625nm Red, 525nm Green, 470nm Blue

Supplier Device Package

0605

Voltage - Forward (Vf) (Typ)

2V Red, 3.1V Green, 2.9V Blue
