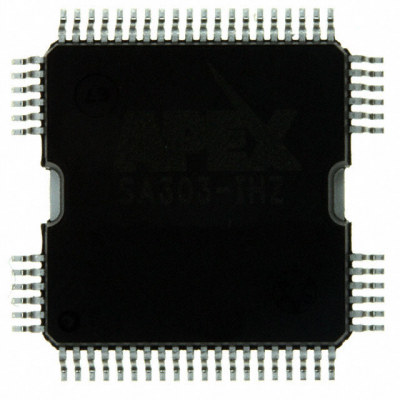

SA303-IHZ

Product Parameter

Series

Apex Precision Power®

Features

-

Interface

PWM

Load Type

Inductive

Packaging

Tray

Technology

DMOS

Part Status

Obsolete

Applications

DC Motors, General Purpose, Solenoids

Rds On (Typ)

400mOhm

Mounting Type

Surface Mount

Package / Case

64-PowerQFP

Voltage - Load

8.3V ~ 60V

Base Part Number

SA30*

Fault Protection

Current Limiting, Over Temperature, Shoot-Through, UVLO

Voltage - Supply

4.5V ~ 5.5V

Output Configuration

Half Bridge (3)

Current - Peak Output

10A

Operating Temperature

-25°C ~ 150°C (TJ)

Supplier Device Package

64-PowerQFP

Current - Output / Channel

3A
