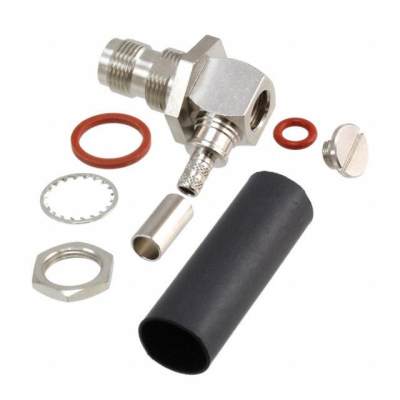

031-6509
| Manufacturer: | Amphenol RF Division |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 031-6509 | ||
| Product Category: | Coaxial Connectors (RF) | Reference Price (In US Dollars) | 1pcs |
| Description: | CONN TNC JACK R/A 50OHM SOLDER | $24.13 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Series
- ARC
- Features
- -
- Includes
- 7 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 1 Insulator, 1 Lockwasher, 1 Nut
- Impedance
- 50Ohm
- Packaging
- Bulk
- Body Finish
- Nickel
- Cable Group
- Belden 7807A, LMR-200
- Part Status
- Active
- Body Material
- Brass
- Housing Color
- Silver
- Mating Cycles
- 500
- Mounting Type
- Panel Mount, Right Angle
- Connector Type
- Jack, Female Socket
- Fastening Type
- Threaded
- Insertion Loss
- 0.18dB
- Voltage Rating
- 500V
- Connector Style
- TNC
- Frequency - Max
- 6GHz
- Number of Ports
- 1
- Mounting Feature
- Bulkhead - Front Side Nut
- Ingress Protection
- IP67 - Dust Tight, Waterproof
- Shield Termination
- Crimp
- Contact Termination
- Solder
- Dielectric Material
- Polyetherimide (PEI); Polytetrafluoroethylene (PTFE)
- Operating Temperature
- -40°C ~ 85°C
- Center Contact Plating
- Gold
- Center Contact Material
- Beryllium Copper
