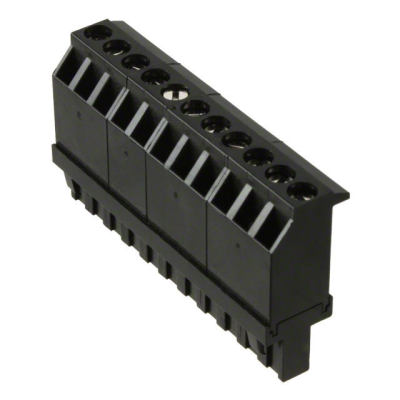

ELFF11230
| Manufacturer: | Amphenol Pcd |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | ELFF11230 | ||
| Product Category: | Terminal Blocks - Headers, Plugs and Sockets | Reference Price (In US Dollars) | 1pcs |
| Description: | TERM BLOCK PLUG 11POS 5.08MM | $5.05 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Plug, Female Sockets
- Color
- Black
- Pitch
- 0.200" (5.08mm)
- Series
- ELFF
- Features
- Retention Latches (Wire Side)
- Packaging
- Bulk
- Screw Size
- -
- Part Status
- Active
- Current - UL
- 15A
- Voltage - UL
- 300V
- Current - IEC
- -
- Mounting Type
- Free Hanging (In-Line)
- Torque - Screw
- 0.79 Nm (7.0 Lb-In)
- Plug Wire Entry
- 90°
- Contact Material
- Copper Alloy
- Number of Levels
- 1
- Insulation Height
- 1.218" (30.94mm)
- Termination Style
- Screw - Rising Cage Clamp
- Wire Strip Length
- 7.87mm, 12.45mm
- Header Orientation
- -
- Ingress Protection
- -
- Contact Tail Length
- -
- Dielectric Material
- Polyphenylene Oxide (PPO)
- Number of Positions
- 11
- Positions Per Level
- 11
- Contact Mating Finish
- Tin
- Operating Temperature
- 105°C
- Wire Gauge or Range - AWG
- 12 AWG, 14-26 AWG
- Wire Gauge or Range - mm²
- -
- Material Flammability Rating
- UL94 V-0
