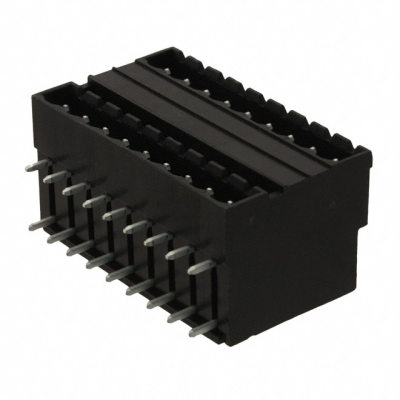

ELFA18110
| Manufacturer: | Amphenol Pcd |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | ELFA18110 | ||
| Product Category: | Terminal Blocks - Headers, Plugs and Sockets | Reference Price (In US Dollars) | 1pcs |
| Description: | TERM BLOCK HDR 18POS 90DEG 5MM | $3.8 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Header, Male Pins, Shrouded (4 Side)
- Color
- Black
- Pitch
- 0.197" (5.00mm)
- Series
- ELFA
- Features
- -
- Packaging
- Bulk
- Screw Size
- -
- Part Status
- Active
- Current - UL
- 15A
- Voltage - UL
- 300V
- Current - IEC
- -
- Mounting Type
- Through Hole
- Torque - Screw
- -
- Plug Wire Entry
- -
- Contact Material
- Brass
- Number of Levels
- 2
- Insulation Height
- 1.107" (28.12mm)
- Termination Style
- Solder
- Wire Strip Length
- -
- Header Orientation
- 90°, Right Angle
- Ingress Protection
- -
- Contact Tail Length
- 0.155" (3.94mm)
- Dielectric Material
- Polyamide (PA), Nylon
- Number of Positions
- 18
- Positions Per Level
- 9
- Contact Mating Finish
- Tin
- Operating Temperature
- 125°C
- Wire Gauge or Range - AWG
- -
- Wire Gauge or Range - mm²
- -
- Material Flammability Rating
- UL94 V-0
