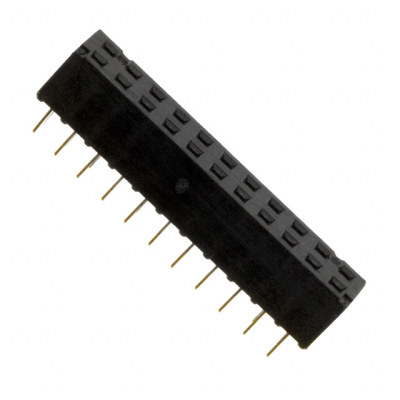

63453-122LF
| Manufacturer: | Amphenol ICC (FCI) |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 63453-122LF | ||
| Product Category: | Rectangular Connectors - Headers, Receptacles, Female Sockets | Reference Price (In US Dollars) | 1pcs |
| Description: | CONN RCPT 22POS 0.079 GOLD PCB | $1.28 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Style
- Board to Board
- Series
- Minitek® 2.00mm
- Features
- -
- Packaging
- Tube
- Part Status
- Active
- Termination
- Solder
- Applications
- General Purpose, Industrial, Medical
- Contact Type
- Female Socket
- Contact Shape
- Square
- Mounting Type
- Through Hole
- Connector Type
- Receptacle
- Fastening Type
- Push-Pull
- Number of Rows
- 2
- Pitch - Mating
- 0.079" (2.00mm)
- Voltage Rating
- 200V
- Contact Material
- Phosphor Bronze
- Insulation Color
- Black
- Insulation Height
- 0.177" (4.50mm)
- Ingress Protection
- -
- Insulation Material
- Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
- Number of Positions
- 22
- Row Spacing - Mating
- 0.079" (2.00mm)
- Contact Finish - Post
- Tin
- Contact Length - Post
- 0.098" (2.50mm)
- Current Rating (Amps)
- 2A
- Operating Temperature
- -55°C ~ 125°C
- Mated Stacking Heights
- -
- Contact Finish - Mating
- Gold
- Number of Positions Loaded
- All
- Material Flammability Rating
- UL94 V-0
- Contact Finish Thickness - Post
- 60.0µin (1.52µm)
- Contact Finish Thickness - Mating
- 30.0µin (0.76µm)
