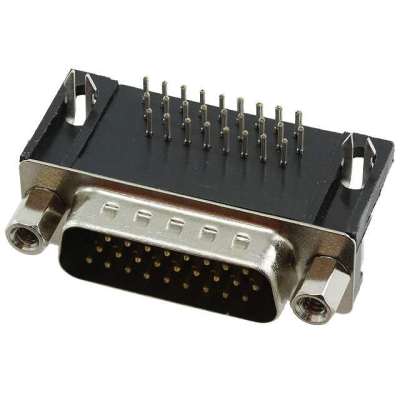

10090926-P264VLF
| Manufacturer: | Amphenol ICC (FCI) |
In Stock 1610 pcs
|
|
|---|---|---|---|
| Datasheet: | 10090926-P264VLF | ||
| Product Category: | D-Sub Connectors | Reference Price (In US Dollars) | 1pcs |
| Description: | CONN DSUB HD PLUG 26POS R/A SLDR | $2.59 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Color
- Black
- Series
- 10090926
- Features
- Board Lock, Grounding Indents, Mounting Brackets
- Packaging
- Tray
- Wire Gauge
- -
- Part Status
- Active
- Termination
- Solder
- Contact Form
- -
- Contact Type
- Signal
- Mounting Type
- Board Edge, Through Hole, Right Angle
- Connector Type
- Plug, Male Pins
- Contact Finish
- Gold
- Flange Feature
- Mating Side, Female Screwlock (4-40)
- Number of Rows
- 3
- Voltage Rating
- 250V
- Backset Spacing
- 0.350" (8.89mm)
- Connector Style
- D-Sub, High Density
- Contact Material
- Copper Alloy
- Ingress Protection
- -
- Dielectric Material
- Thermoplastic, Glass Filled
- Number of Positions
- 26
- Current Rating (Amps)
- 2.5A
- Operating Temperature
- -55°C ~ 105°C
- Shell Material, Finish
- Steel, Nickel Plated
- Contact Finish Thickness
- Flash
- Material Flammability Rating
- UL94 V-0
- Shell Size, Connector Layout
- 2 (DA, A) High Density
