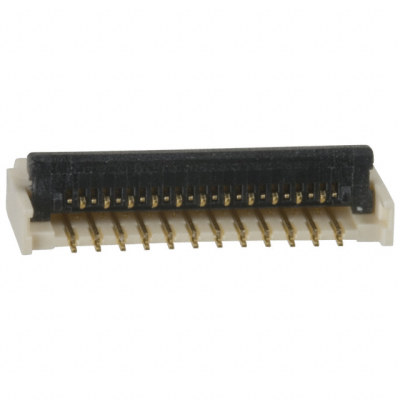

10017251-232240ELF
| Manufacturer: | Amphenol ICC (FCI) |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 10017251-232240ELF | ||
| Product Category: | FFC, FPC (Flat Flexible) Connectors | Reference Price (In US Dollars) | 1pcs |
| Description: | CONN FFC TOP 23POS 0.30MM R/A | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Pitch
- 0.012" (0.30mm)
- Series
- SFYL-U
- Features
- Low Insertion Force (LIF)
- Packaging
- Cut Tape (CT)
- Part Status
- Obsolete
- Termination
- Solder
- Housing Color
- White
- Mating Cycles
- 10
- Mounting Type
- Surface Mount, Right Angle
- Actuator Color
- Black
- Cable End Type
- Notched
- Contact Finish
- Gold
- Flat Flex Type
- FFC
- Voltage Rating
- 200V
- Locking Feature
- Flip Lock
- Contact Material
- Copper Alloy
- Actuator Material
- Thermoplastic
- FFC, FCB Thickness
- 0.20mm
- Height Above Board
- 0.047" (1.20mm)
- Dielectric Material
- Thermoplastic, Glass Filled
- Number of Positions
- 23
- Current Rating (Amps)
- 0.2A
- Operating Temperature
- -25°C ~ 85°C
- Connector/Contact Type
- Contacts, Top
- Contact Finish Thickness
- -
- Material Flammability Rating
- UL94 V-0
