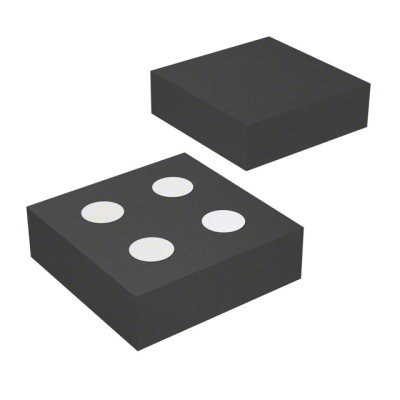

AOC2422

Product Parameter

Series

-

FET Type

N-Channel

Packaging

Tape & Reel (TR)

Vgs (Max)

±5V

Technology

MOSFET (Metal Oxide)

FET Feature

-

Part Status

Obsolete

Mounting Type

Surface Mount

Package / Case

4-SMD, No Lead

Vgs(th) (Max) @ Id

800mV @ 250µA

Operating Temperature

-55°C ~ 150°C (TJ)

Rds On (Max) @ Id, Vgs

33mOhm @ 1.5A, 2.5V

Power Dissipation (Max)

600mW (Ta)

Supplier Device Package

4-AlphaDFN (0.97x0.97)

Gate Charge (Qg) (Max) @ Vgs

15nC @ 4.5V

Drain to Source Voltage (Vdss)

8V

Input Capacitance (Ciss) (Max) @ Vds

870pF @ 4V

Current - Continuous Drain (Id) @ 25°C

3.5A (Ta)

Drive Voltage (Max Rds On, Min Rds On)

1.2V, 2.5V
