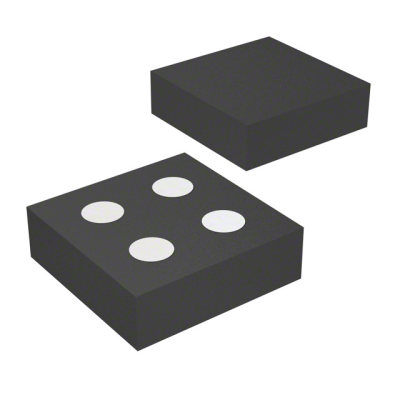

AOC2417

Product Parameter

Series

-

FET Type

P-Channel

Packaging

Tape & Reel (TR)

Vgs (Max)

±12V

Technology

MOSFET (Metal Oxide)

FET Feature

-

Part Status

Obsolete

Mounting Type

Surface Mount

Package / Case

4-SMD, No Lead

Vgs(th) (Max) @ Id

1.4V @ 250µA

Operating Temperature

-55°C ~ 150°C (TJ)

Rds On (Max) @ Id, Vgs

32mOhm @ 1.5A, 10V

Power Dissipation (Max)

550mW (Ta)

Supplier Device Package

4-AlphaDFN (1.57x1.57)

Gate Charge (Qg) (Max) @ Vgs

40nC @ 10V

Drain to Source Voltage (Vdss)

20V

Input Capacitance (Ciss) (Max) @ Vds

1355pF @ 10V

Current - Continuous Drain (Id) @ 25°C

3.5A (Ta)

Drive Voltage (Max Rds On, Min Rds On)

2.5V, 10V
