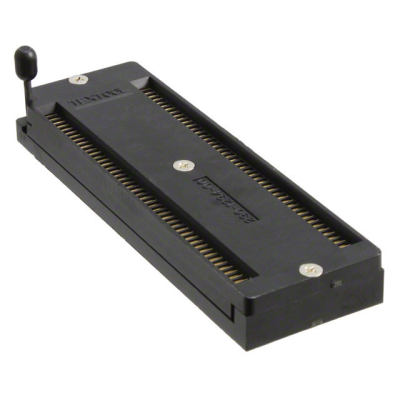

290-1294-00-3302J
| Manufacturer: | 3M |
In Stock 1 pcs
|
|
|---|---|---|---|
| Datasheet: | 290-1294-00-3302J | ||
| Product Category: | Sockets for ICs, Transistors | Reference Price (In US Dollars) | 1pcs |
| Description: | CONN IC DIP SOCKET ZIF 90POS GLD | $46.55 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- DIP, ZIF (ZIP)
- Series
- Textool™
- Features
- Closed Frame
- Packaging
- Bulk
- Part Status
- Active
- Termination
- Solder
- Pitch - Post
- 0.070" (1.78mm)
- Mounting Type
- Through Hole
- Pitch - Mating
- 0.070" (1.78mm)
- Contact Resistance
- 15mOhm
- Dielectric Material
- Polysulfone (PSU), Glass Filled
- Contact Finish - Post
- Gold
- Current Rating (Amps)
- 1A
- Operating Temperature
- -55°C ~ 125°C
- Contact Finish - Mating
- Gold
- Contact Material - Post
- Beryllium Copper
- Termination Post Length
- 0.130" (3.30mm)
- Contact Material - Mating
- Beryllium Copper
- Material Flammability Rating
- UL94 V-0
- Contact Finish Thickness - Post
- 30.0µin (0.76µm)
- Contact Finish Thickness - Mating
- 30.0µin (0.76µm)
- Number of Positions or Pins (Grid)
- 90 (2 x 45)
