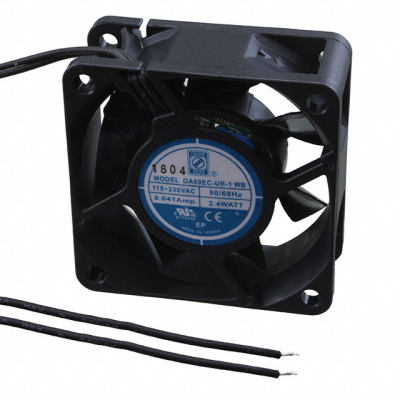

OA60EC-UR-1WB
| Manufacturer: | Orion Fans |
In Stock 102 pcs
|
|
|---|---|---|---|
| Datasheet: | OA60EC-UR-1WB | ||
| Product Category: | AC Fans | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN EC 60X25MM 95-264VAC | $28.31 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3950 RPM
- Noise
- 31.0 dB(A)
- Width
- 25.00mm
- Series
- OA60EC
- Weight
- 0.133 lb (60.33 g)
- Air Flow
- 19.5 CFM (0.546m³/min)
- Fan Type
- Tubeaxial
- Features
- Electronic Commutation (EC), Thermal Overload Protector (TOP)
- Approvals
- CE, cURus, UR, TUV
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 2.40W
- Voltage Range
- -
- Static Pressure
- 0.170 in H2O (42.3 Pa)
- Voltage - Rated
- 95 ~ 264VAC
- Lifetime @ Temp.
- 50000 Hrs @ 40°C
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square - 60mm L x 60mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.050A
- Operating Temperature
- -4 ~ 158°F (-20 ~ 70°C)
