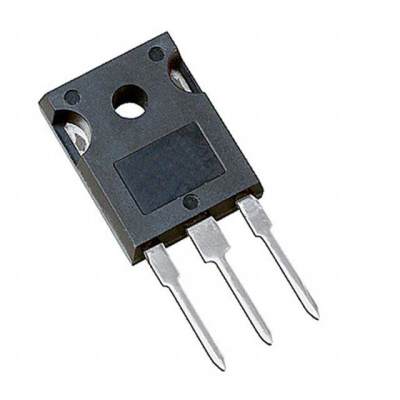

IRG4P254S

Product Parameter

Series

-

IGBT Type

-

Packaging

Bulk

Input Type

Standard

Gate Charge

200nC

Part Status

Obsolete

Power - Max

200W

Mounting Type

Through Hole

Package / Case

TO-247-3

Test Condition

200V, 55A, 5Ohm, 15V

Switching Energy

380µJ (on), 3.5mJ (off)

Td (on/off) @ 25°C

40ns/270ns

Operating Temperature

-55°C ~ 150°C (TJ)

Supplier Device Package

TO-247AC

Vce(on) (Max) @ Vge, Ic

1.5V @ 15V, 55A

Current - Collector (Ic) (Max)

98A

Current - Collector Pulsed (Icm)

196A

Voltage - Collector Emitter Breakdown (Max)

250V
