9188A WH001
| Manufacturer: | Alpha Wire |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 9188A WH001 | ||
| Product Category: | Coaxial Cables (RF) | Reference Price (In US Dollars) | 1pcs |

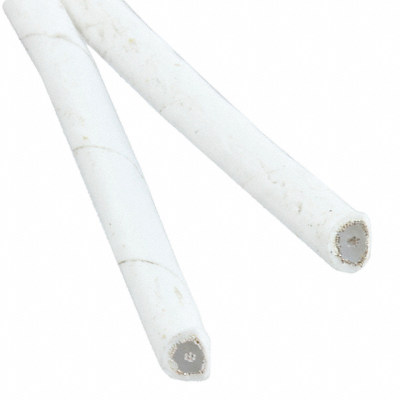

| Description: | CABLE COAXIAL RG188A 25AWG 1000' | $1357.57 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Usage
- -
- Length
- 1000.0' (304.80m)
- Series
- -
- Features
- -
- Impedance
- 50 Ohms
- Cable Type
- Coaxial
- Wire Gauge
- 25 AWG
- Cable Group
- RG-188A
- Part Status
- Active
- Shield Type
- Braid
- Jacket Color
- White
- Shield Coverage
- 94%
- Shield Material
- Copper, Silver Coated
- Conductor Strand
- 7 Strands / 0.0067"
- Conductor Material
- Steel, Silver Coated
- Dielectric Diameter
- 0.060" (1.52mm)
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Operating Temperature
- -55°C ~ 200°C
- Jacket (Insulation) Diameter
- 0.105" (2.67mm)
- Jacket (Insulation) Material
- Polytetrafluoroethylene (PTFE)
- VoP, Velocity of Propagation
- 70
